Home Products Dod70p06 60v 70a P-channel Mosfet Doingter
This P-Channel MOSFE
This P-Channel MOSFE
COD not available
MOSFET by Doingter

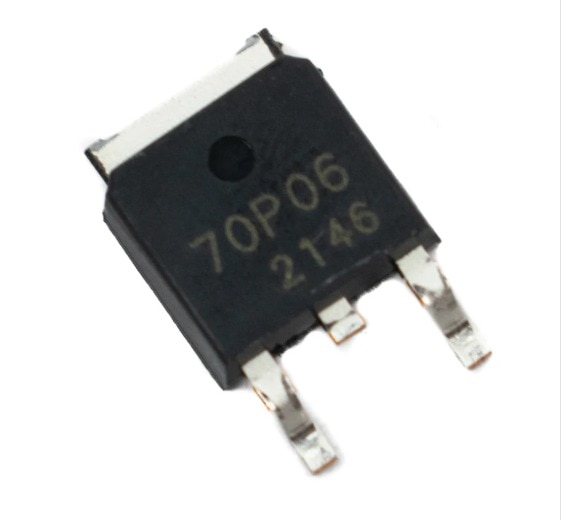

Dod70p06 60v 70a P-channel Mosfet Doingter

INR 15
Share with
Share this on :

Description

Product details

This P-Channel MOSFET by Doingter uses advanced trench technology and design to provide excellent RDS(on) with a low gate charge. It can be used in various low voltage applications.Features：1) VDS=60V, ID=&0A, RDS(ON)<10mΩ @VGS=10V2) Low gate charge3) Green device available4) Advanced high cell density trench technology for ultra RDS(ON)5) Excellent package for good heat dissipation
