Home Products SN74HC595DR
The SNx4HC595 device
The SNx4HC595 device
COD not available
INTEGRATED CIRCUITS by TEXAS INSTRUMENTS

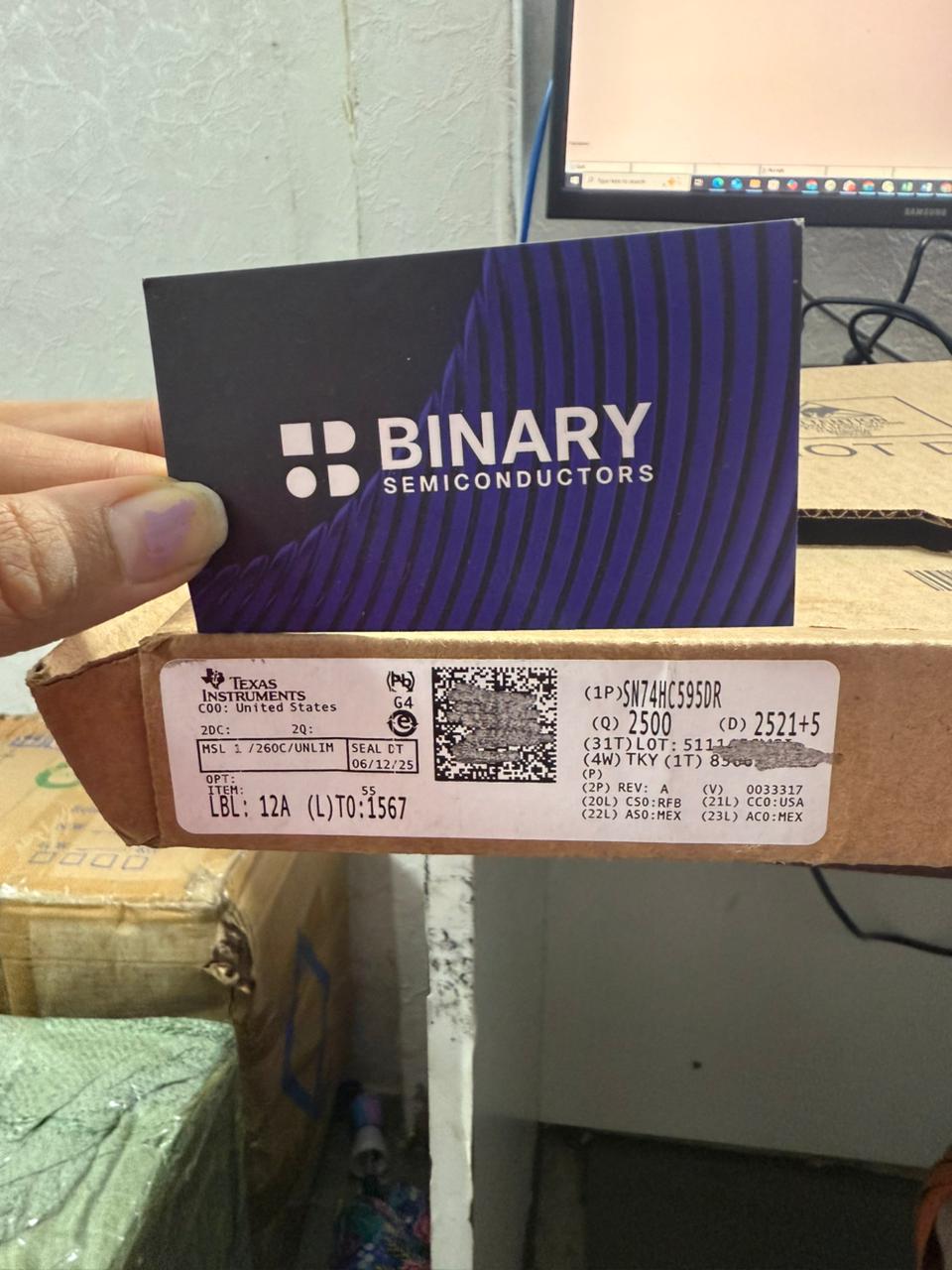

SN74HC595DR

Share with
Share this on :

Description

Product details

The SNx4HC595 devices contain an 8-bit, serial-in, parallel-out shift register that feeds an 8-bit D-type storage register. The storage register has parallel 3- state outputs. Separate clocks are provided for both the shift and storage register. The shift register has a direct overriding clear (SRCLR) input, serial (SER) input, and serial outputs for cascading. When the output-enable (OE) input is high, the outputs are in the high-impedance state.
