MCU by FREMONT MICRO DEVICES

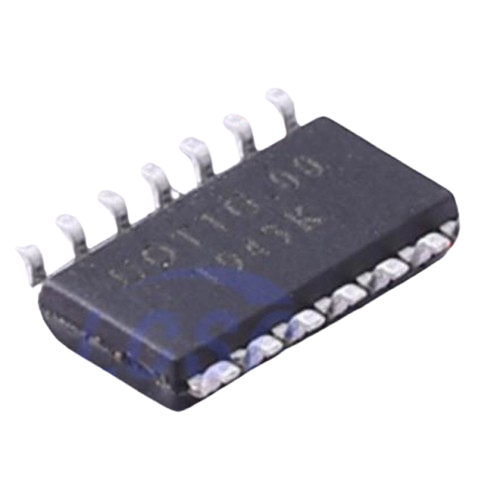

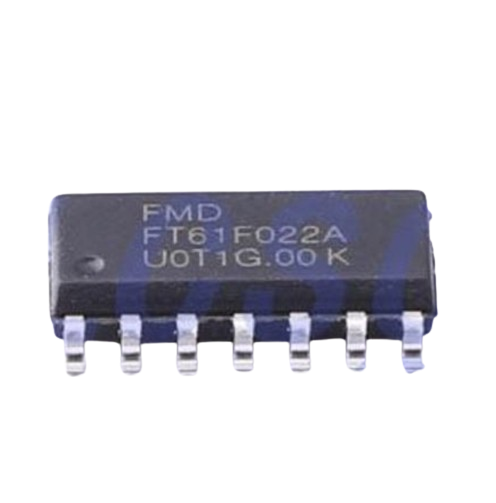

FT61F022A-RB FMD MCU Equivalent to PIC16F676 and MDT10f676 with 2kb EEPROM - SOP14 Package
INR 11
Enquire
Description
Key Features: 8-bit EEPROM-based RISC microcontroller Program memory: 2K x 14, RAM: 128 x 8, Data memory: 256 x 8 Available in 6, 8, 10, 14, and 16-pin configurations True 10-bit accuracy ADC 7 timers and 4 independent PWM channels Enhanced capture/compare/PWM module with dead zone control 2 analog comparators and 2 voltage regulator outputs Low standby, watchdog timer (WDT), and operating current Power-on reset (POR), low voltage reset (LVR), and low voltage detection (LVD) High ESD and EFT protection Operates at low VDD voltage
Other Specifications
| PROM : | 2K |
| Max Operating Frequency : | 16M/2T |
| 8 Bit timer : | 2 |
| 12 Bit timer : | 3 |
| 16 Bit timer : | 1 |
| 10-bit ADC : | 7+1 |
| PWM : | 3+1 |
