Home Products NCV4274AST33T3G ONSEMI IC REG LINEAR 3.3V 400MA SOT-223
NCV4274AST33T3G ONSE
NCV4274AST33T3G ONSE
In Stock
COD not available
INTEGRATED CIRCUITS

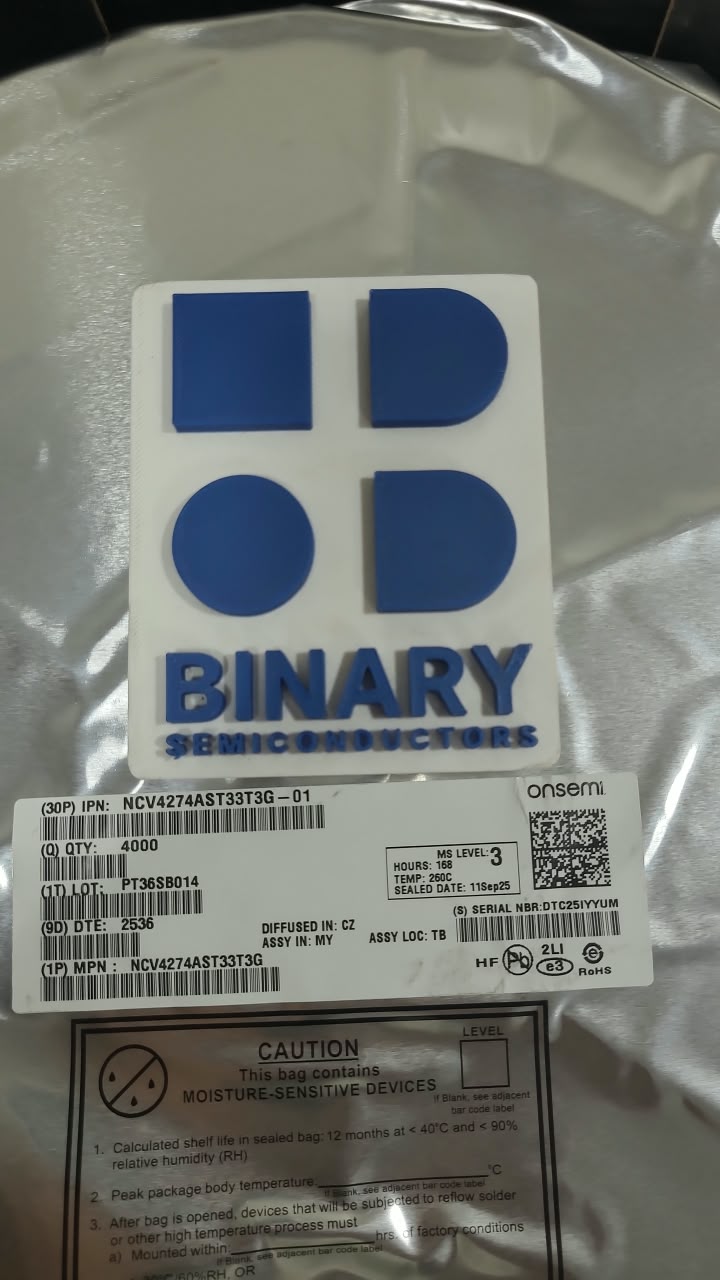

NCV4274AST33T3G ONSEMI IC REG LINEAR 3.3V 400MA SOT-223

In Stock
COD not available
Share with
Share this on :

Description

Product details

The NCV4274AST33T3G and NCV4274A is a precision micro−power voltage regulator with an output current capability of 400 mA available in the DPAK, D2PAK and SOT−223 packages. The output voltage is accurate within 2.0% or 4.0% depending on the version with a maximum dropout voltage of 0.5 V with an input up to 40 V. Low quiescent current is a feature drawing only 150 A with a 1 mA load. This part is ideal for automotive and all battery operated microprocessor equipment. The regulator is protected against reverse battery, short circuit, and thermal overload conditions. The device can withstand load dump transients making it suitable for use in automotive environments. |NCV4274AST33T3G|NCV4274AST33T3G DATASHEET|NCV4274AST33T3G ONSEMI|NCV4274AST33T3G RESELLER NEAR ME|NCV4274AST33T3G RESELLER IN INDIA|NCV4274AST33T3G RESELLER IN MUMBAI|ONSEMI DISTRIBUTOR IN INDIA|ONSEMI DISTRIBUTOR IN MUMBAI|ONSEMI DISTRIBUTOR NEAR ME|
