Home Products NCE0140K2N-Channel Enhancement Mode Power MOSFET WUXI NCE POWER
The NCE0140K2 uses a
The NCE0140K2 uses a
COD not available
MOSFET by NCE POWER

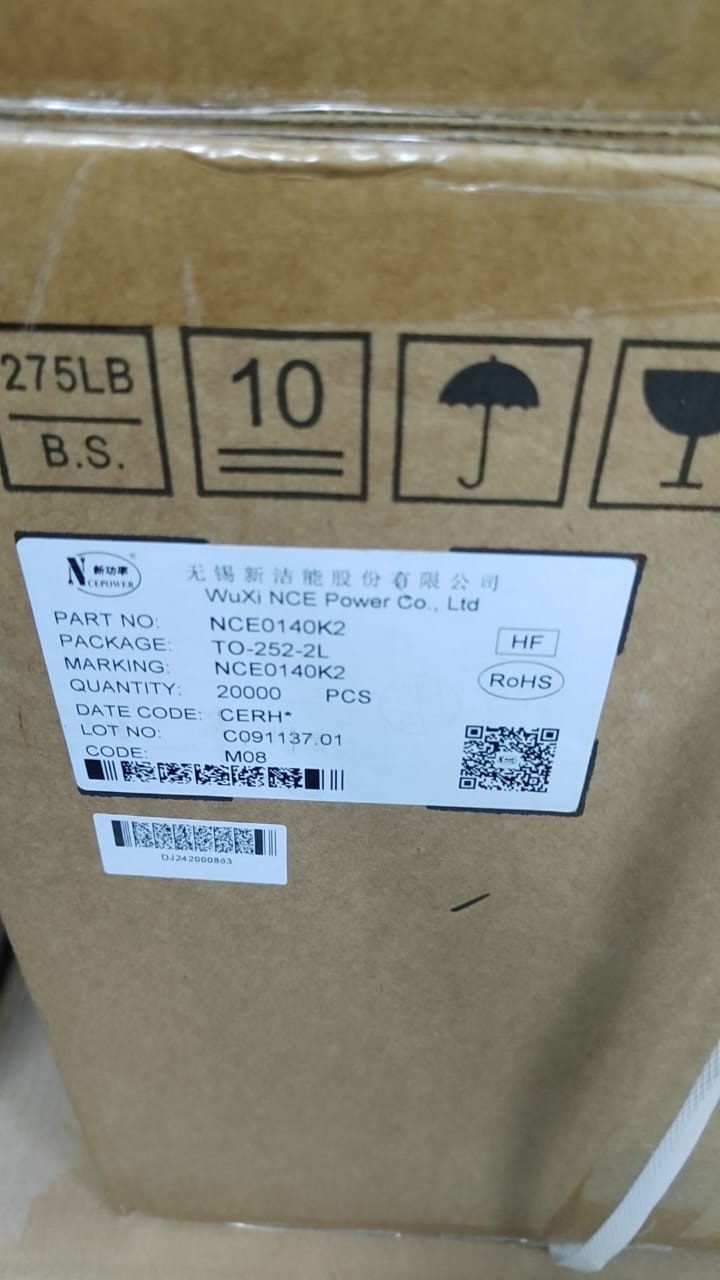

NCE0140K2N-Channel Enhancement Mode Power MOSFET WUXI NCE POWER - TO-252-2L PACKAGE

INR 9
Share with
Share this on :

Description

Product details

The NCE0140K2 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide variety of applications. General Features ● VDS = 100V,ID =40A RDS(ON) < 17mΩ @ VGS=10V (Typ:14.5mΩ) ● Special process technology for high ESD capability ● High density cell design for ultra low Rdson ● Fully characterized avalanche voltage and current ● Good stability and uniformity with high EAS ● Excellent package for good heat dissipation Application ● Power switching application ● Hard switched and high frequency circuits ● Uninterruptible power supply
