Home Products MMPF0100F0AEP, NXP Semiconductors, QFN-56
Power Management Spe
Power Management Spe
COD not available
INTEGRATED CIRCUITS by NXP Semiconductors

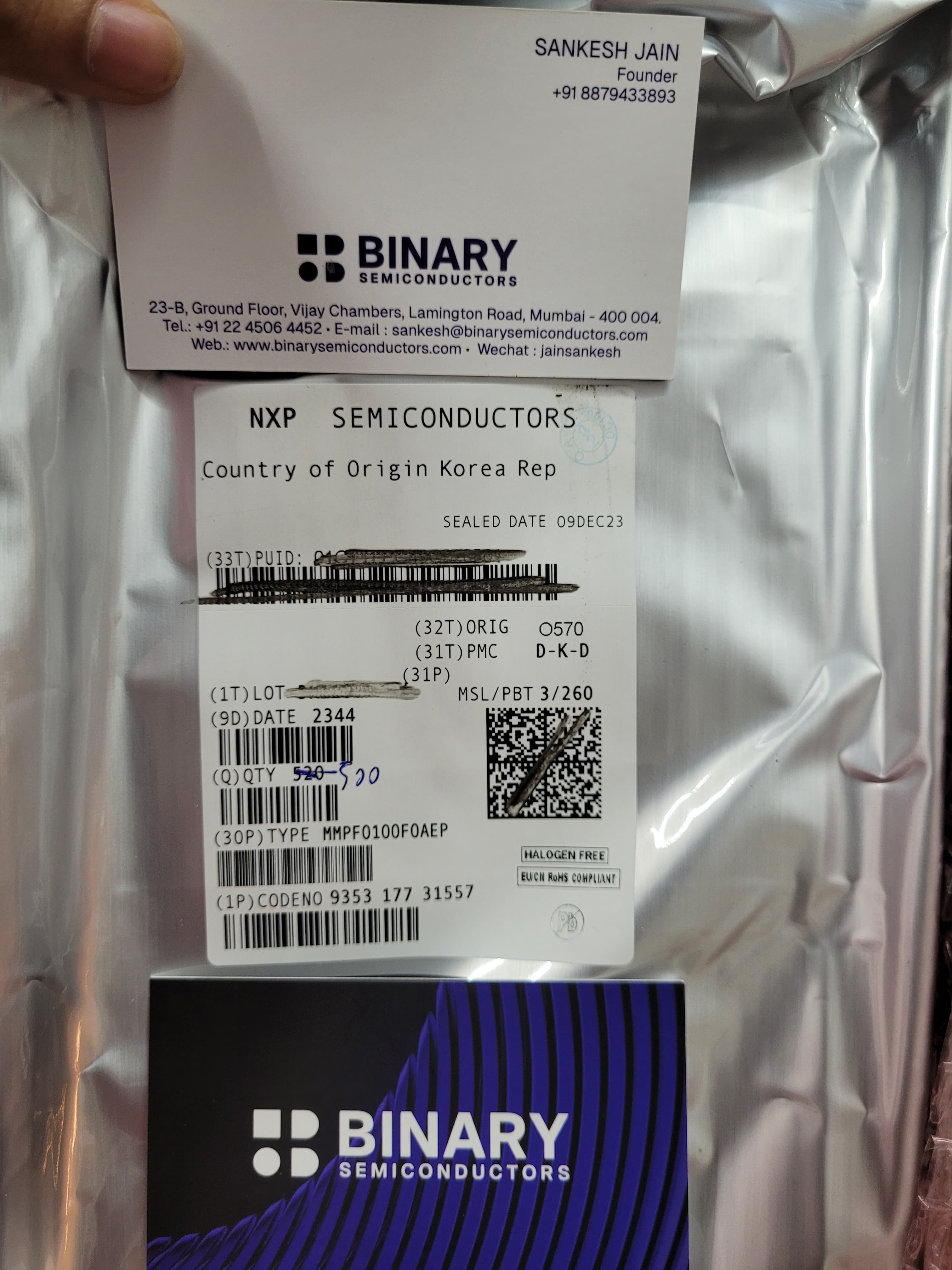

MMPF0100F0AEP, NXP Semiconductors, QFN-56

INR 250
Share with
Share this on :

Description

Product details

Power Management Specialised - PMIC PFUZE100 The PF0100 SMARTMOS power management integrated circuit (PMIC) provides a highly programmable/ configurable architecture, with fully integrated power devices and minimal external components. With up to six buck converters, six linear regulators, RTC supply, and coin-cell charger, the PF0100 can provide power for a complete system, including applications processors, memory, and system peripherals, in a wide range of applications. With on-chip one time programmable (OTP) memory, the PF0100 is available in pre-programmed standard versions, or non-programmed to support custom programming. The PF0100 is defined to power an entire embedded MCU platform solution such as i.MX 6 based eReader, IPTV, medical monitoring, and home/factory automation.
