Home Products MM3474L02VBE - MITSUMI-BATTERY PROTECTION IC- TSOP-20D
COD not available
INTEGRATED CIRCUIT by Mitsumi Electric Company Ltd (JAPAN)

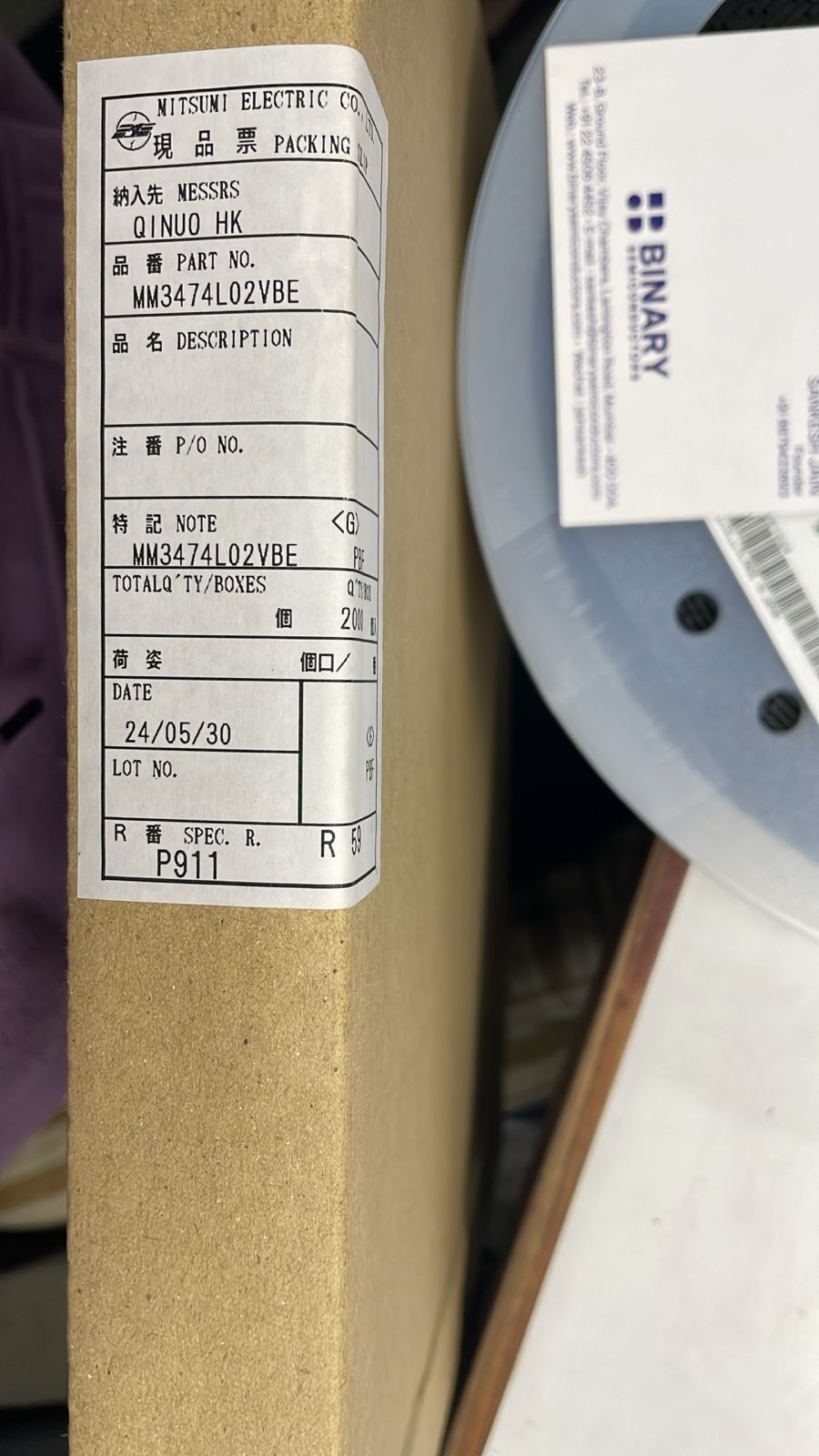

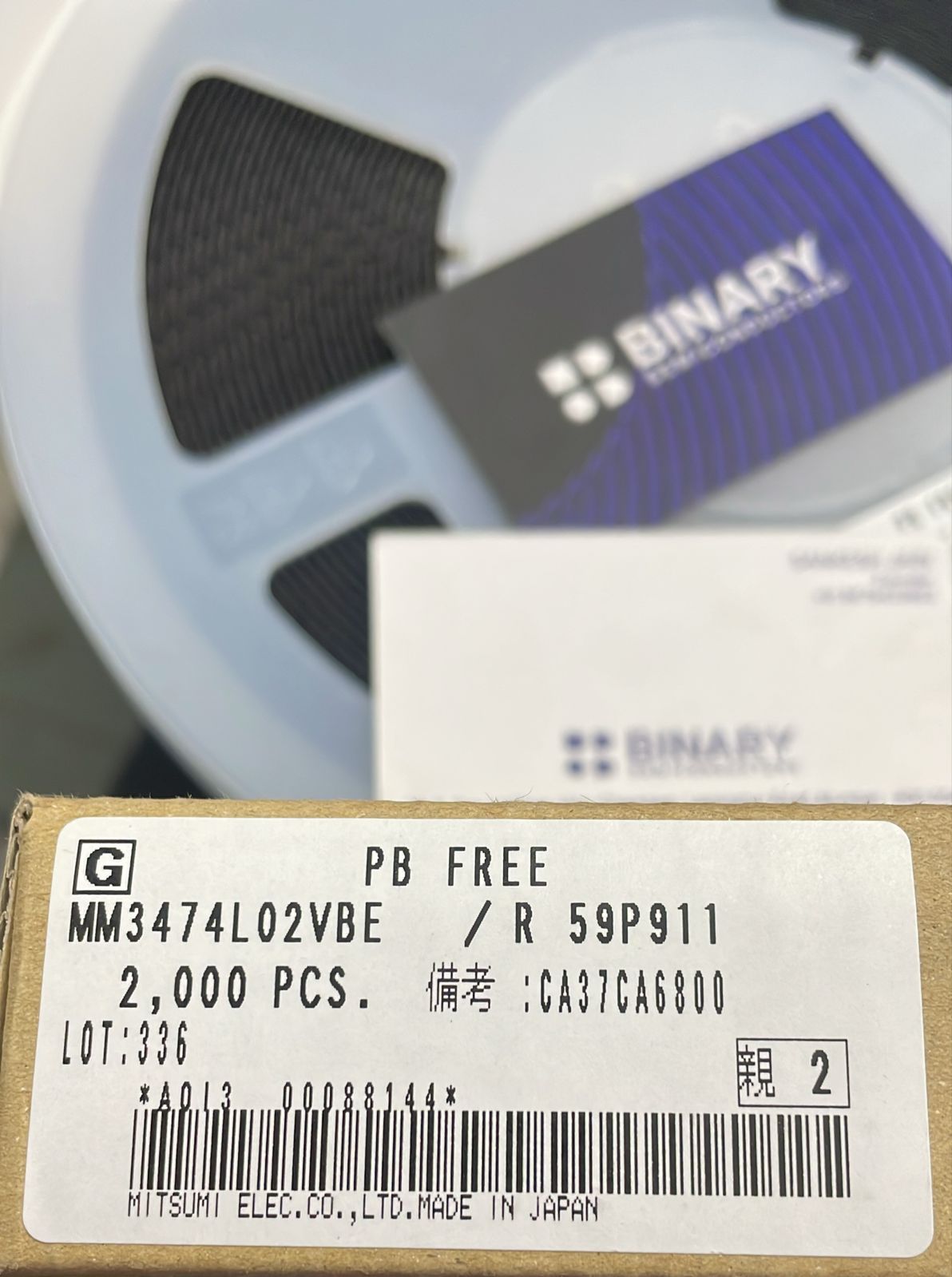

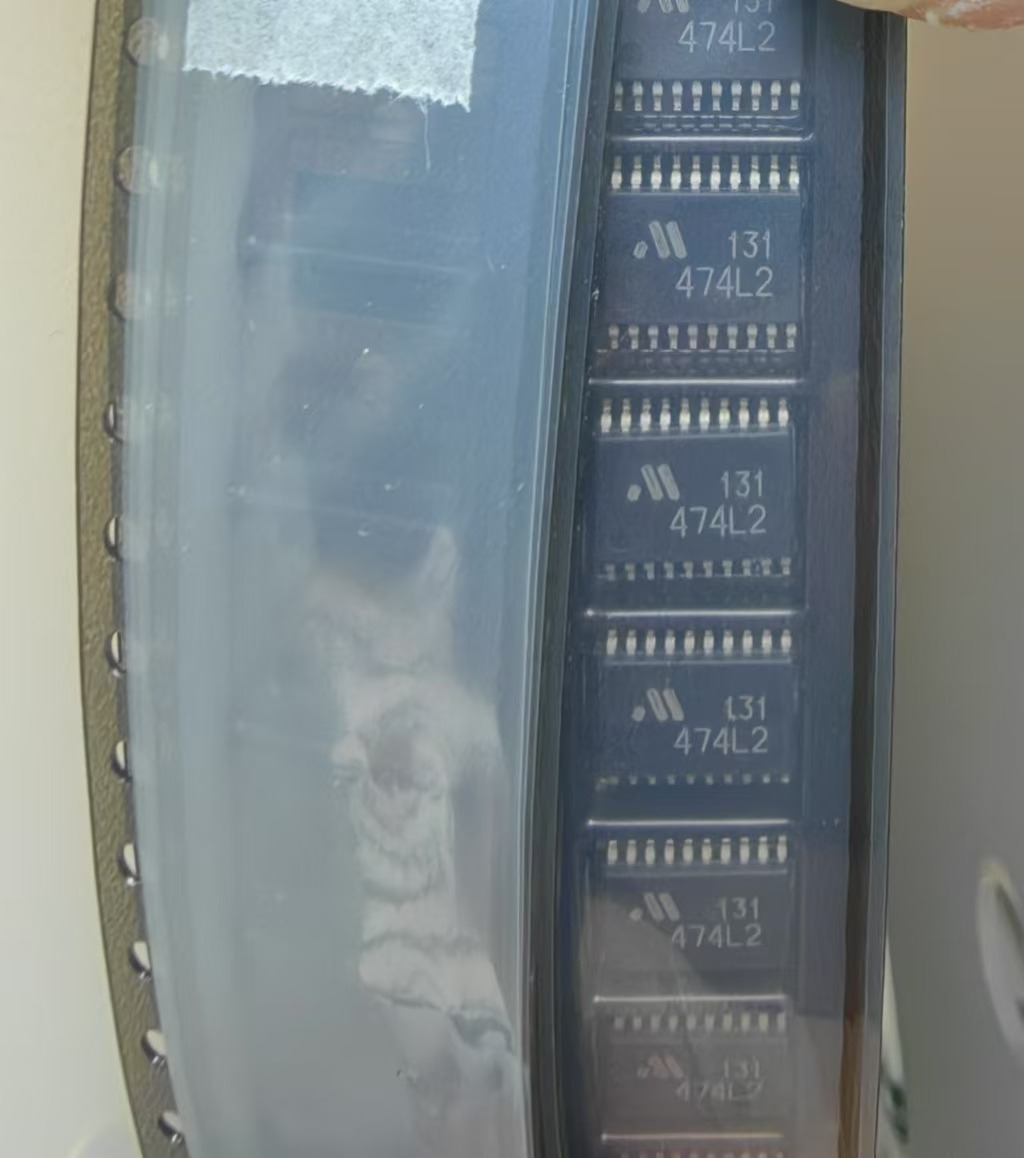

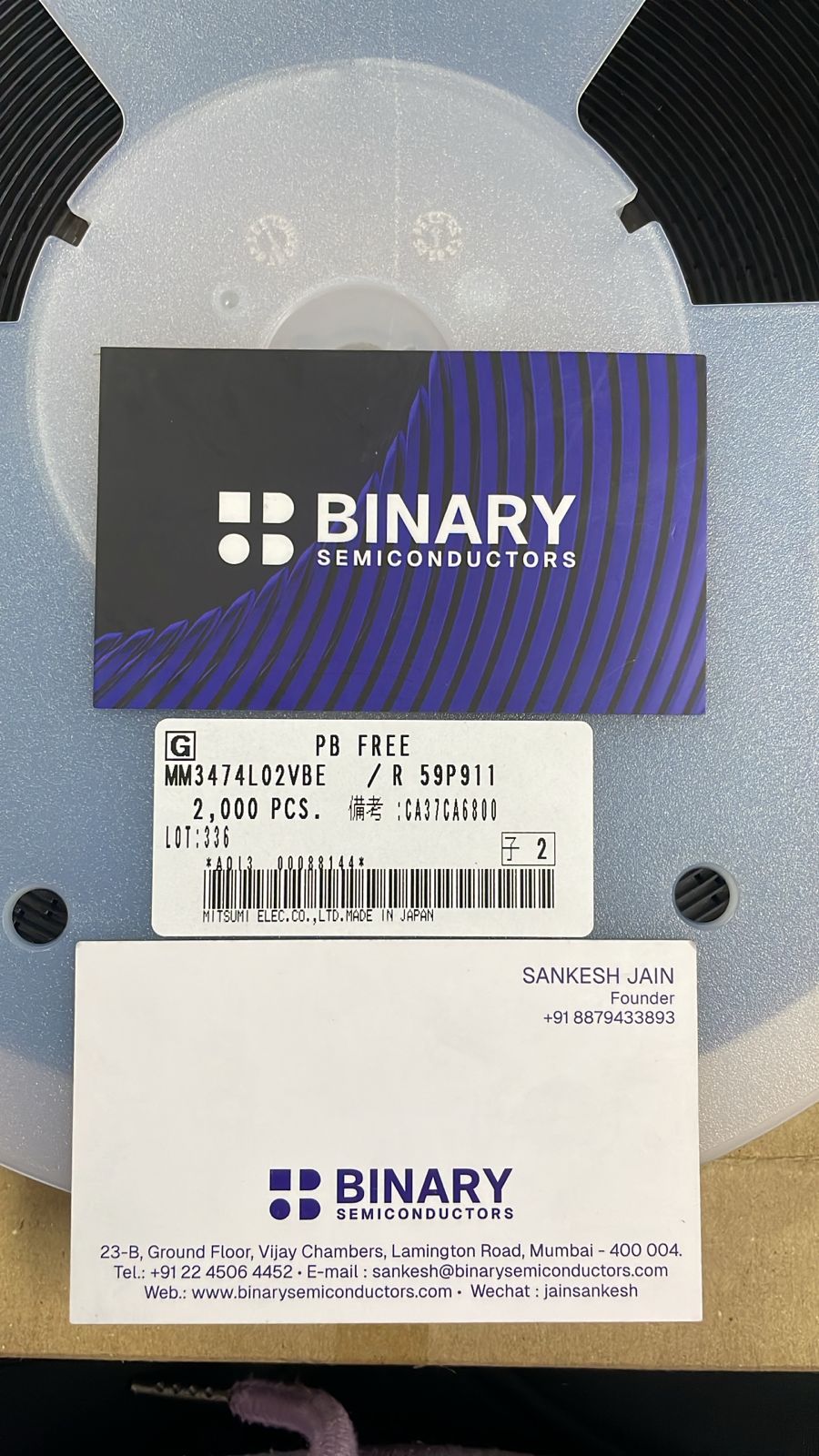

MM3474L02VBE - MITSUMI-BATTERY PROTECTION IC- TSOP-20D

INR 75
Share with
Share this on :

Description

Product details

MM3474 series is an overcharge, overdischarge and overcurrent protection IC for a lithium-ion / lithium-polymer secondary battery. This supports 3 to 5 serial cells, and the number of cells can be switched over by inputting high / low signal to SEL terminal. MM3474 series can protect Lithium ion battery pack of 6-plus serial cells by connecting in cascade. This also provides the control terminals of output overdischarge detection (SDC) and output overcharge detection (SOC), which allows configuring an application with fewer external parts for 6 or more cells connected in series.

Keywords

  • Filter tags

Other Products

Related Products

SF2525X is a high performance offline PSR controller for low power AC/DC charger and adapter applications. It operates in primary-side sensing and regulation. Consequently, opto-coupler and TL431 could be eliminated. Proprietary Constant Voltage (CV) and Constant Current (CC) control is integrated as shown in the figure 1 below. In CC control, the current and output power setting can be adjusted externally by the sense resistor Rs at CS pin. In CV control, PFM operations are utilized to achieve high performance and high efficiency. In addition, good load regulation is achieved by the built-in cable drop compensation. The chip consumes very low operation current (typical 300µA), it can achieve less than 50mW standby power to meet strict standby power standard. SF2525X offers comprehensive protection coverage with auto-recovery features including Cycle- by-Cycle current limiting, VDD over voltage protection, feedback loop open protection, short circuit protection, built-in leading edge blanking, VDD under voltage lockout (UVLO), etc.
Buy Now
View Details
SF2525ATGT - 5V1A - 5W charger/adapter IC

INR3

The LD1117 is a low drop voltage regulator able to provide up to 800 mA of output current, available even in adjustable version (VREF = 1.25 V). Concerning fixed versions, are offered the following output voltages: 1.2 V, 1.8 V, 2.5 V, 3.3 V and 5.0 V. The device is supplied in: SOT-223, DPAK, SO-8 and TO-220. The SOT- 223 and DPAK surface mount packages optimize the thermal characteristics even offering a relevant space saving effect. High efficiency is assured by NPN pass transistor. In fact in this case, unlike than PNP one, the quiescent current flows mostly into the load. Only a very common 10 µF minimum capacitor is needed for stability. On chip trimming allows the regulator to reach a very tight output voltage tolerance, within ± 1 % at 25 °C. The adjustable LD1117 is pin to pin compatible with the other standard. Adjustable voltage regulators maintaining the better performances in terms of drop and tolerance.
Buy Now
View Details
LD1117S50CTR

INR25

MTC20F208XS1RC48BB1T Micron
View Details
MTC20F208XS1RC48BB1T Micron

INR160000
