Home Products EL3021
EL3021 is an Isolato
EL3021 is an Isolato
COD not available
OPTOCOUPLER by EVERLIGHT

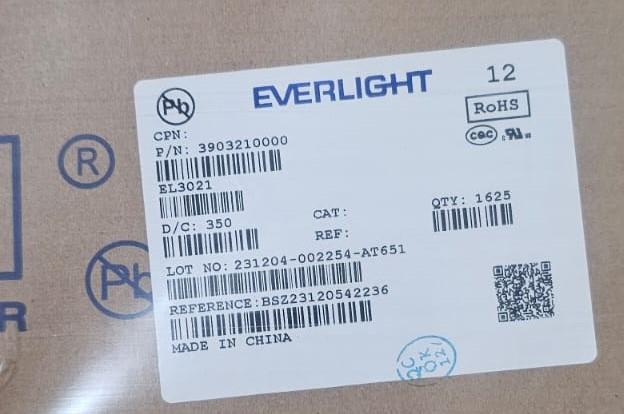

EL3021

INR 4
Share with
Share this on :

Description

Product details

EL3021 is an Isolator with forward voltage of 1.18V from Everlight Electronics. It provides voltage isolation upto 5kV, its off state voltage is 400V. Operational temperature range is -55 to 100 C. Standard packing is 65 units in a tube.
