Home Products DK5V100R20V TO-277 DONGKE SEMICONDUCYOR
DK5V100R20V is a sim
DK5V100R20V is a sim
COD not available
integrated circuit by DONGKE SEMICONDUCTOR

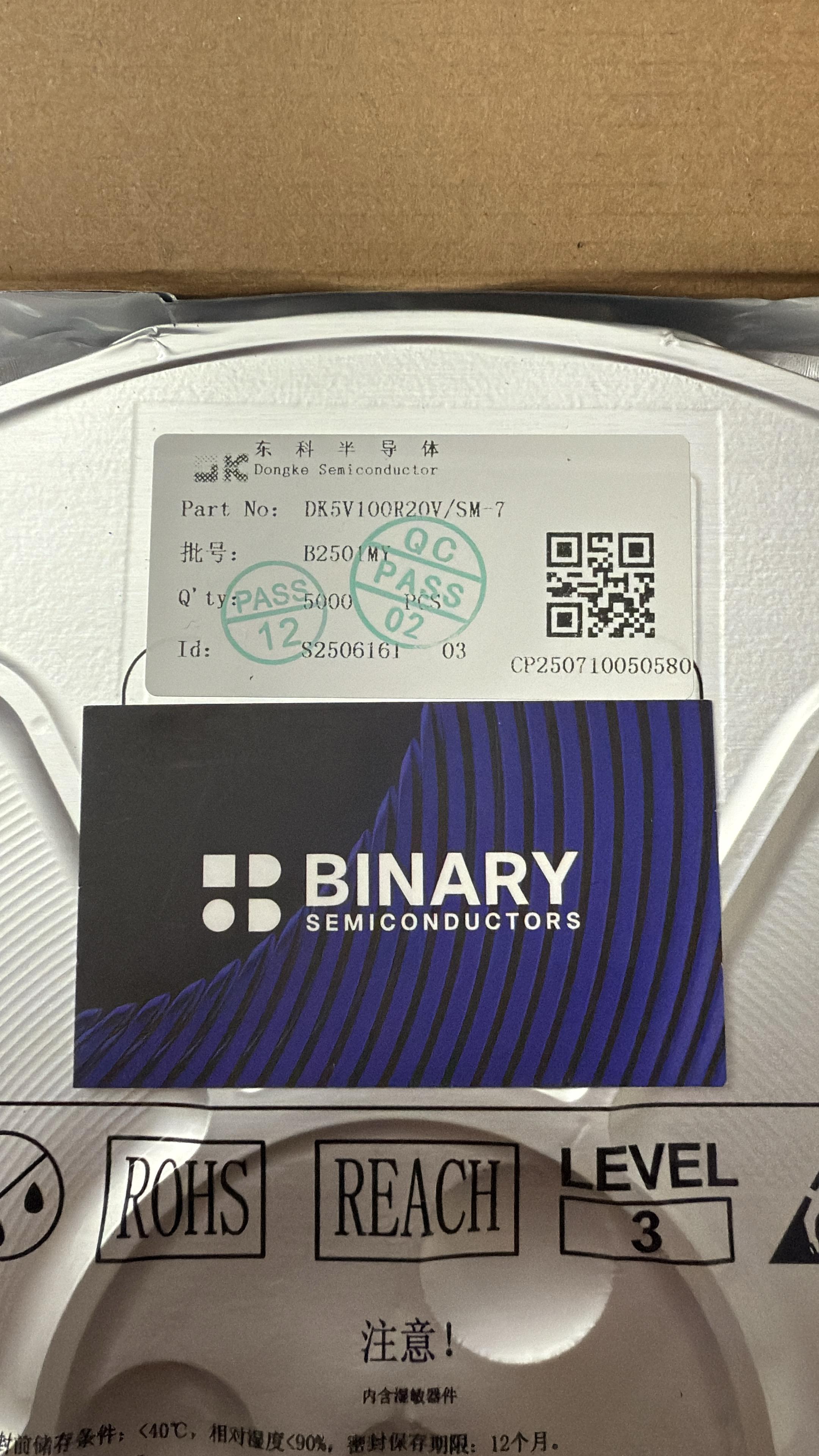

DK5V100R20V TO-277 DONGKE SEMICONDUCYOR - TO-277 PACKAGE

INR 13
Share with
Share this on :

Description

Product details

DK5V100R20V is a simple but high efficiency synchronous rectifier solution. With 100V power NMOSintegrated, it can significantly reduce the conduction loss of traditional Schottky diode. Hence it canimprove the overall efficiency and replace the same specifications of Schottky rectifier diodes currentlyonthe market. The package of DK5V100R20V is SM-7(Compatible with TO-277 packaging) .
