Home Products DCR012405P Texas Instruments
Isolated Module DC D
Isolated Module DC D
COD not available
Power Management (PMIC)/DC-DC Converters by Texas Instruments

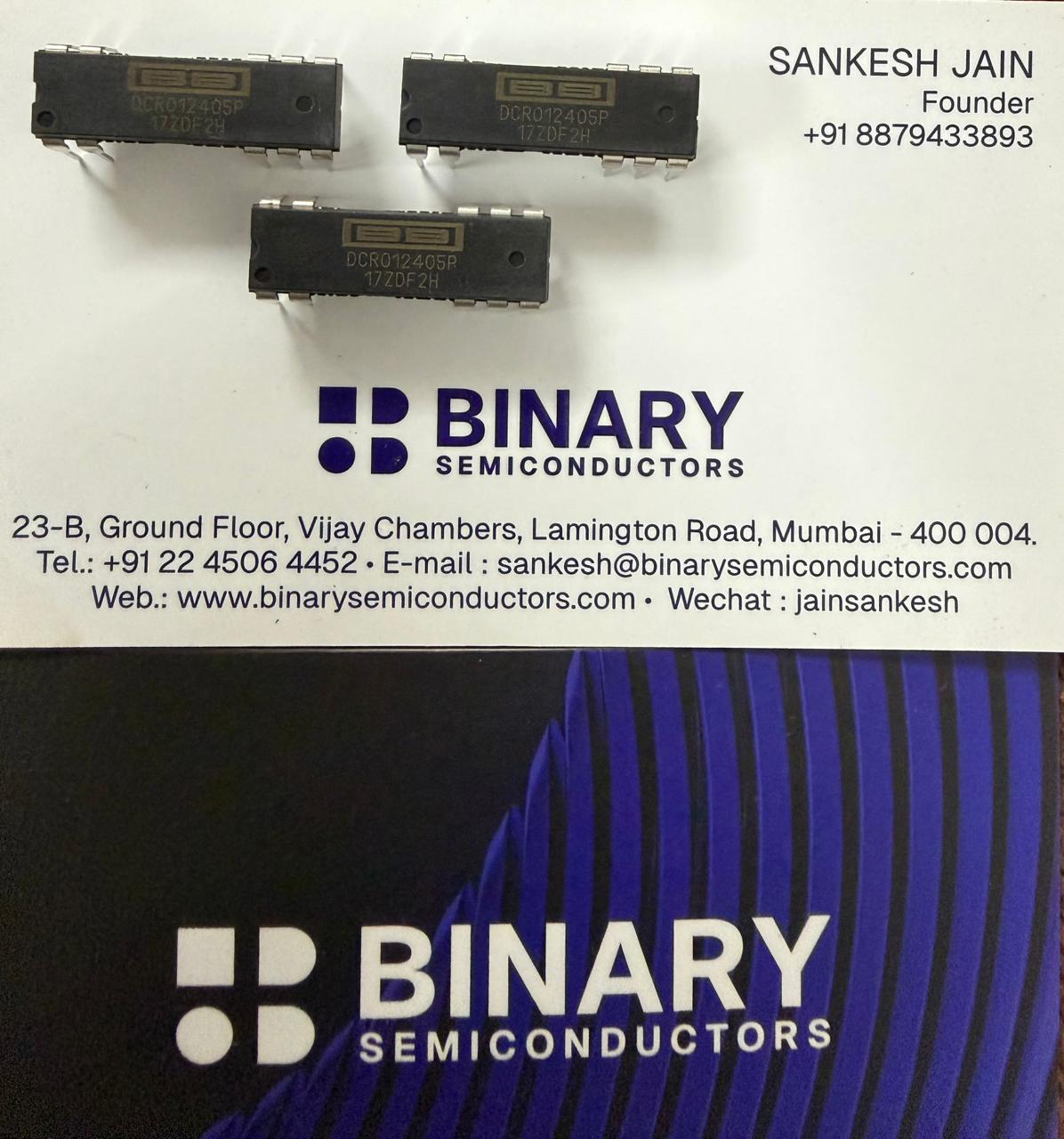

DCR012405P Texas Instruments

INR 2000
Share with
Share this on :

Description

Product details

Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input DC DC CONVERTER 5V 1W The DCR01 family is a series of high-efficiency, input-isolated, output-regulated DC/DC converters. In addition to 1-W nominal, galvanically-isolated output power capability, this range of DC/DC converters offer very low output noise, thermal protection, and high accuracy. This combination of features and small size makes the DCR01 series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation
