Description
Product details

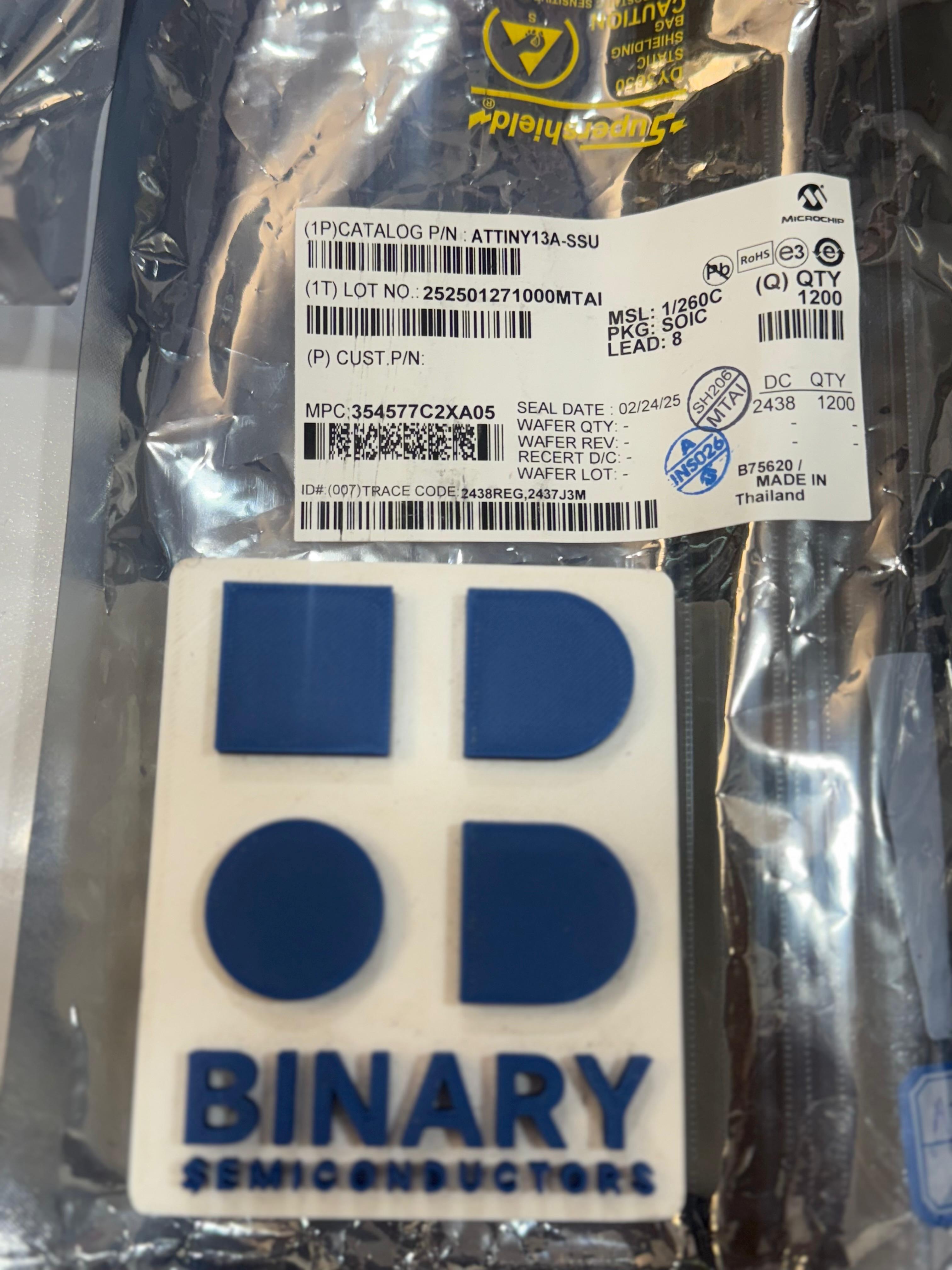

The ATTINY13A-SSU-ND is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATtiny13A achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. • High Performance, Low Power AVR® 8-Bit Microcontroller • Advanced RISC Architecture – 120 Powerful Instructions – Most Single Clock Cycle Execution – 32 x 8 General Purpose Working Registers – Fully Static Operation – Up to 20 MIPS Througput at 20 MHz • High Endurance Non-volatile Memory segments – 1K Bytes of In-System Self-programmable Flash program memory – 64 Bytes EEPROM – 64 Bytes Internal SRAM – Write/Erase Cycles: 10,000 Flash/100,000 EEPROM – Data retention: 20 Years at 85C/100 Years at 25C (see page 12) – Programming Lock for Self-Programming Flash & EEPROM Data Security • Peripheral Features – One 8-bit Timer/Counter with Prescaler and Two PWM Channels – 4-channel, 10-bit ADC with Internal Voltage Reference – Programmable Watchdog Timer with Separate On-chip Oscillator – On-chip Analog Comparator • Special Microcontroller Features – debugWIRE On-chip Debug System – In-System Programmable via SPI Port – External and Internal Interrupt Sources – Low Power Idle, ADC Noise Reduction, and Power-down Modes – Enhanced Power-on Reset Circuit – Programmable Brown-out Detection Circuit with Software Disable Function |ATTINY13A-SSU-ND|ATTINY13A-SSU-ND DATASHEET|ATTINY13A-SSU-ND MICROCHIP|MICROCHIO DISTRIBUTOR IN INDIA |MICROCHIO DISTRIBUTOR IN MUMBAI|MICROCHIO DISTRIBUTOR NEAR ME|ATTINY13A-SSU-ND RESELLER NEAR ME|ATTINY13A-SSU-ND RESELLER IN INDIA|ATTINY13A-SSU-ND RESELLER IN MUMBAI|
