Home Products 78L05G
The UTC 78L05G is a
The UTC 78L05G is a
COD not available
Integrated Circuits by UTC

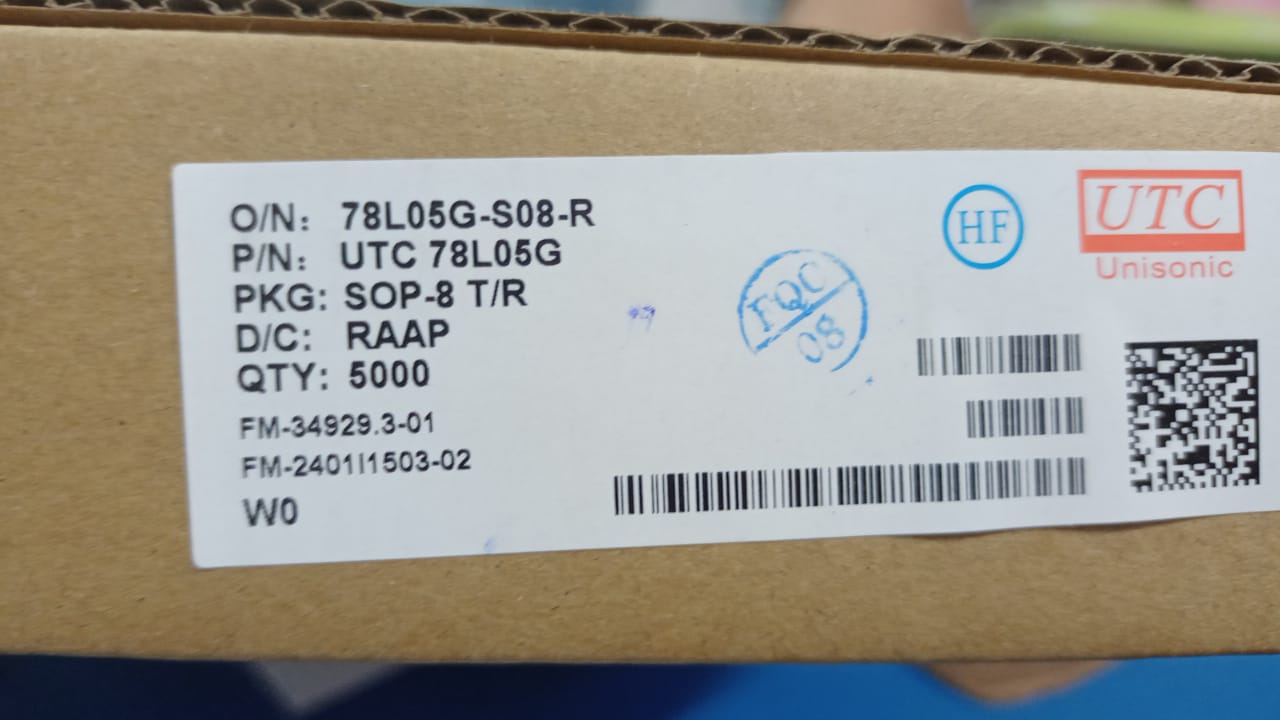

78L05G

INR 2
Share with
Share this on :

Description

Product details

The UTC 78L05G is a three-terminal positive voltage regulator that provides a fixed 5V output. It’s capable of delivering up to 100mA of output current. This component is known for its reliability and stability, making it a popular choice for various electronic applications. Key specifications include: • Input Voltage: Can handle up to 30V. • Output Voltage: Fixed at 5V. • Output Current: Can provide up to 100mA. • Package: Available in SOT-89-3 and other variants.
