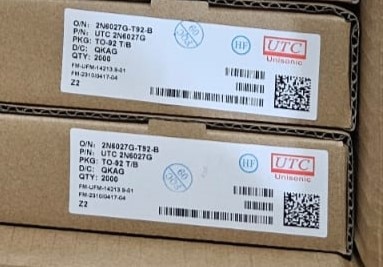

The 2N6027G-T92-B is a silicon-controlled switch (SCS) from UTC designed for low current and low voltage triggering applications. It features a sensitive gate trigger, making it useful in light dimmers, relay controls, and thyristor triggering circuits. Programmable Unijunction Transistor Programmable Unijunction Transistor Triggers Designed to enable the engineer to "program" unijunction characteristics such as RBB, n, IV, and IP by merely selecting two resistor values. Application includes thyristor-trigger, oscillator, pulse and timing circuits. These devices may also be used in special thyristor applications due to the availability of an anode gate. Supplied in an inexpensive TO-92 plastic package for high-volume reguirements, this package is readily adaptable for use in automatic insertion equipment. • Programmable - RBB, 1, IV and IP * Low On-State Voltage - 1.5 Volts Maximum @ IF = 50 mA - Low Gate to Anode Leakage Current — 10 nA Maximum • High Peak Output Voltage — 11 Volts Typical • Low Offset Voltage — 0.35 Volt Tical (RG = 10 k ohms) • Device Marking: Logo, Device Type, e.g. 2N6027, Date Code
