Description

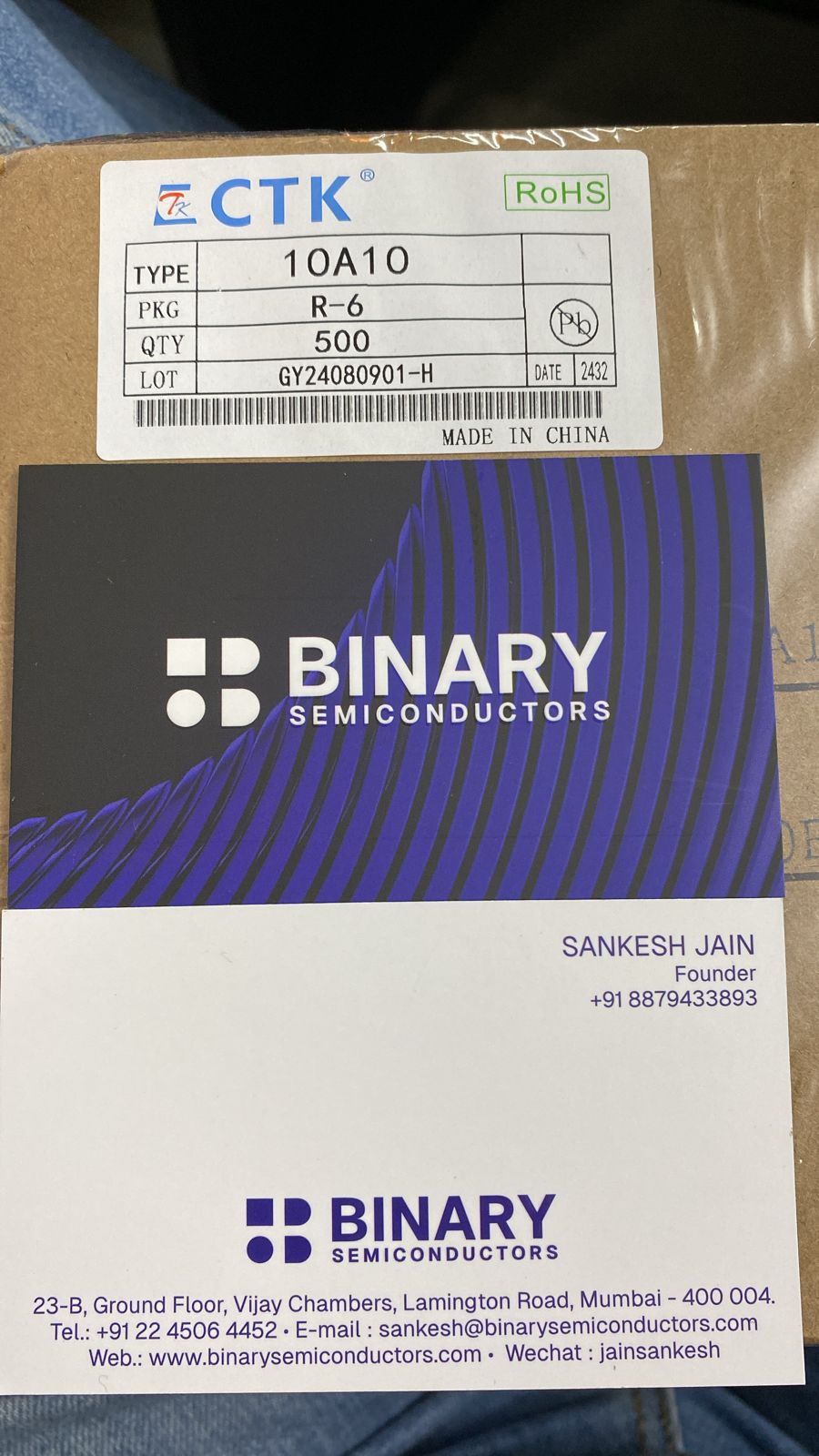

The 10A10 is a general-purpose, high-current rectifier diode. It is designed for use in power supply circuits and other applications where efficient rectification of alternating current (AC) to direct current (DC) is needed. Here are some key characteristics of the 10A10 diode: Peak Reverse Voltage (VRRM): Typically around 1000V, meaning it can block up to 1000 volts when reverse-biased. Average Rectified Current (IF): Rated for 10A, indicating it can handle a continuous forward current of 10 amperes. Forward Voltage Drop (VF): Usually around 1.1V at its maximum current rating, which is the voltage drop across the diode when it is conducting. Reverse Recovery Time: This is typically slow, making the 10A10 more suitable for low-frequency rectification rather than high-speed switching applications. Package Type: The 10A10 is commonly available in an axial-lead package, making it easy to integrate into a wide range of circuits. Applications include use in power supplies, battery chargers, and other circuits where robust and reliable rectification of AC to DC is required.
