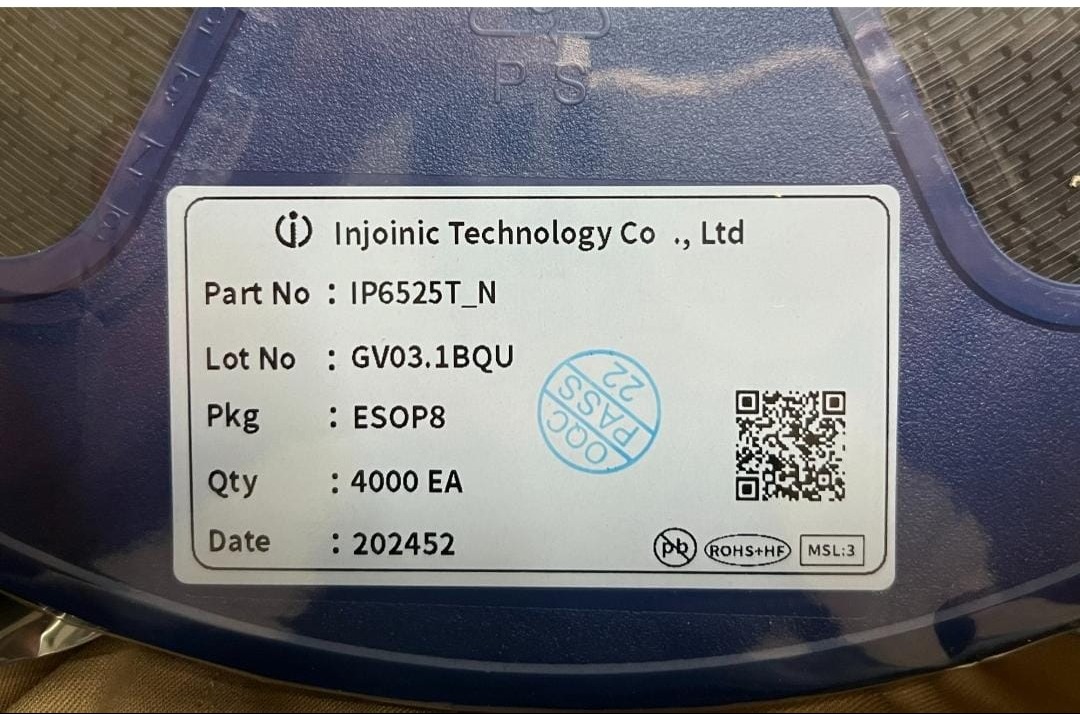

IP6525T_N INJONIC ESOP-8 AVAILABLE IN STOCK @MUMBAI BEST PRICE
DM TO ENQUIRE MORE @9611268169
The IP6525T is a buck converter with integrated synchronous switching, supporting four fast charging protocols and providing a complete solution for car chargers, fast charging adapters, and smart power strips.
The IP6525T incorporates a power MOSFET, with an input voltage range of 9.6V to 32V and an output voltage range of 3V to 12V, providing a maximum output power of 18W. It automatically adjusts the output voltage and current based on the detected fast charging protocol, with typical output voltages and currents of 5V@3.4A, 9V@2.0A, and 12V@1.5A. The IP6525T boasts a buck conversion efficiency of up to 98%.
The IP6525T's output exhibits CV/CC characteristics. When the output current is less than a set value, it outputs in CV mode with a constant output voltage; when the output current exceeds a set value, it outputs in CC mode with a reduced output voltage.
The IP6525T features line compensation in its output voltage. As the output current increases, the output voltage rises accordingly to compensate for voltage drops caused by connection line impedance.
The IP6525T has a soft-start function to prevent inrush current from affecting the stability of the input power supply.
The IP6525T integrates fast charging protocols and can automatically identify the fast charging protocols supported by the connected device via DP/DM, then automatically adjust the output voltage and current. Supported fast charging protocols include DCP (Apple, Samsung, and BC1.2), Qualcomm QC2.0/QC3.0, Huawei Fast Charging Protocol FCP, and Samsung Fast Charging Protocol AFC.
The IP6525T offers multiple protection features, including input overvoltage and undervoltage protection, and output overcurrent, overvoltage, undervoltage, and short-circuit protection. The IP6525T is packaged in an ESOP8 package.
