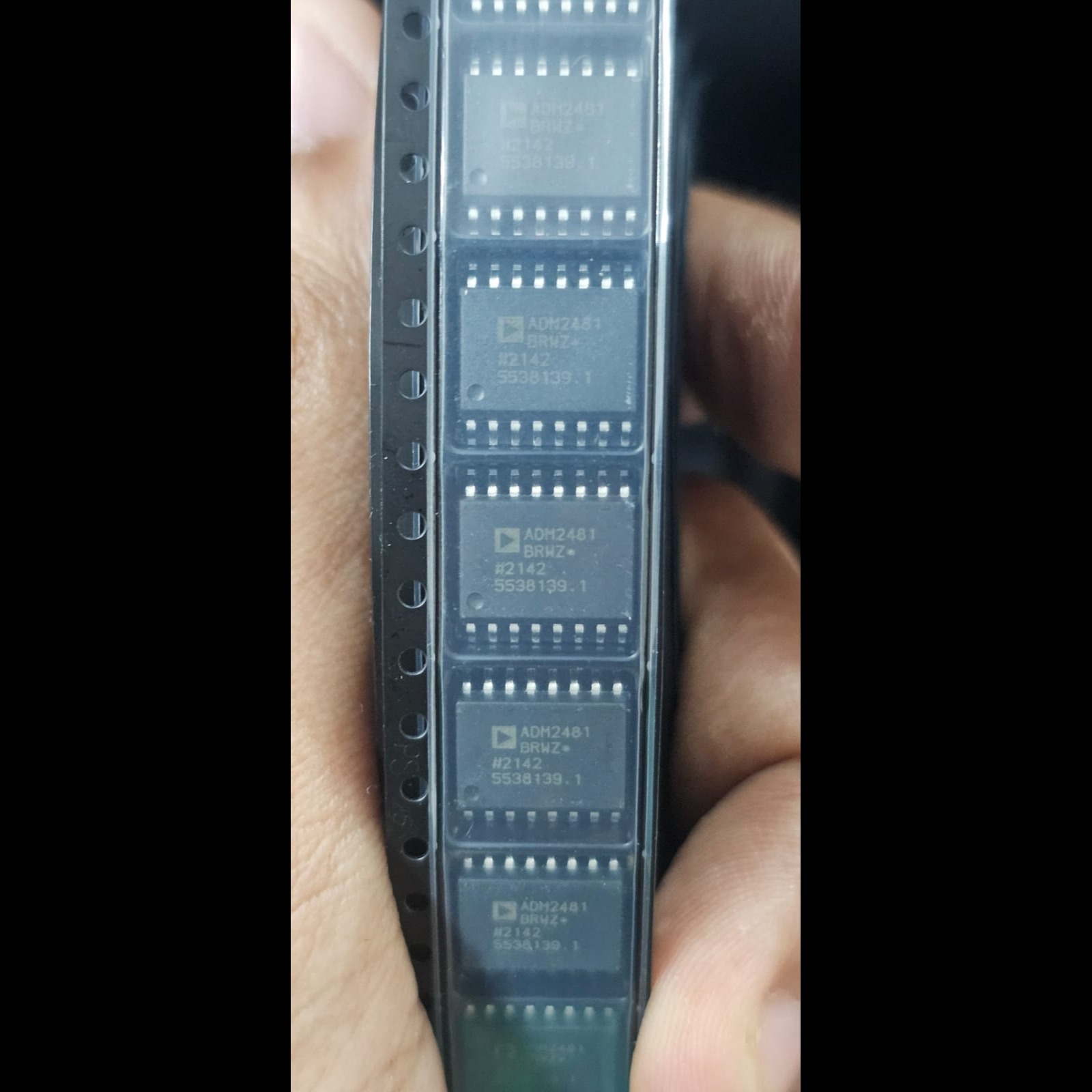

The ADM2481 differential bus transceiver is an integrated,
galvanically isolated component designed for bidirectional data
communication on balanced, multipoint bus transmission lines.
It complies with ANSI EIA/TIA-485-A and ISO 8482: 1987(E).
Using iCoupler® technology from Analog Devices, Inc., the
ADM2481 combines a 3-channel isolator, a three-state differential line driver, and a differential input receiver into a single
package. The logic side of the device is powered with either a
5 V or 3 V supply, and the bus side uses a 5 V supply only.
The ADM2481 is slew-limited to reduce reflections with improperly terminated transmission lines. The controlled slew rate
limits the data rate to 500 kbps. The input impedance of the
device is 96 kΩ, allowing up to 256 transceivers on the bus. Its
driver has an active-high enable feature. The driver differential
outputs and receiver differential inputs are connected internally
to form a differential I/O port. When the driver is disabled or
when VDD1 or VDD2 = 0 V, this imposes minimal loading on
the bus. An active-high receiver disable feature, which causes
the receiver output to enter a high impedance state, is provided
as well.
The receiver inputs have a true fail-safe feature that ensures a
logic-high receiver output level when the inputs are open or
shorted. This guarantees that the receiver outputs are in a
known state before communication begins and at the point
when communication ends.
Current limiting and thermal shutdown features protect against
output short circuits and bus contention situations that might
cause excessive power dissipation. The part is fully specified
over the industrial temperature range of −40°C to +85°C and is
available in a 16-lead, wide body SOIC package.
